A 2-part epoxy coating applied by brush or heated airless spray for corrosion protection of metallic surfaces in contact with aqueous solutions at temperatures up to 95°C (203°F).
This solvent-free material offers good chemical resistance against a wide range of chemicals and protects equipment from the effects of corrosion, salt, water and environmental damage. It will cure at ambient temperature without the need for additional heat, eliminating health and safety hazards.
Belzona 5892 exhibits low surface bloom and excellent inter-coat adhesion enabling 2-coat application without the need for frost blasting. It has been formulated in light colours to assist visibility and provide good inspection characteristics in poorly lit vessels.
This material can also be used for the creation of irregular load bearing shims with good electrical insulation characteristics.
- Effectively protects equipment operating under constant immersion up to 95°C (203°F)
- Suitable for contact with hot potable water, approved by WRAS and NSF/ANSI 61
- Post cures in service
- Long-term corrosion resistance
- Reduced health and safety risks as it is solvent-free
- Easy application by brush or heated airless spray and cure at room temperature - no hot work involved
- Two coat system with a long overcoat window
- Will outperform conventional glass flake coatings
- Good chemical resistance against a wide range of chemicals
- Excellent bonding to many surfaces including cast iron, stainless steel, brass, copper, concrete, wood, fiberglass and aluminum
Applications for Belzona 5892 include:

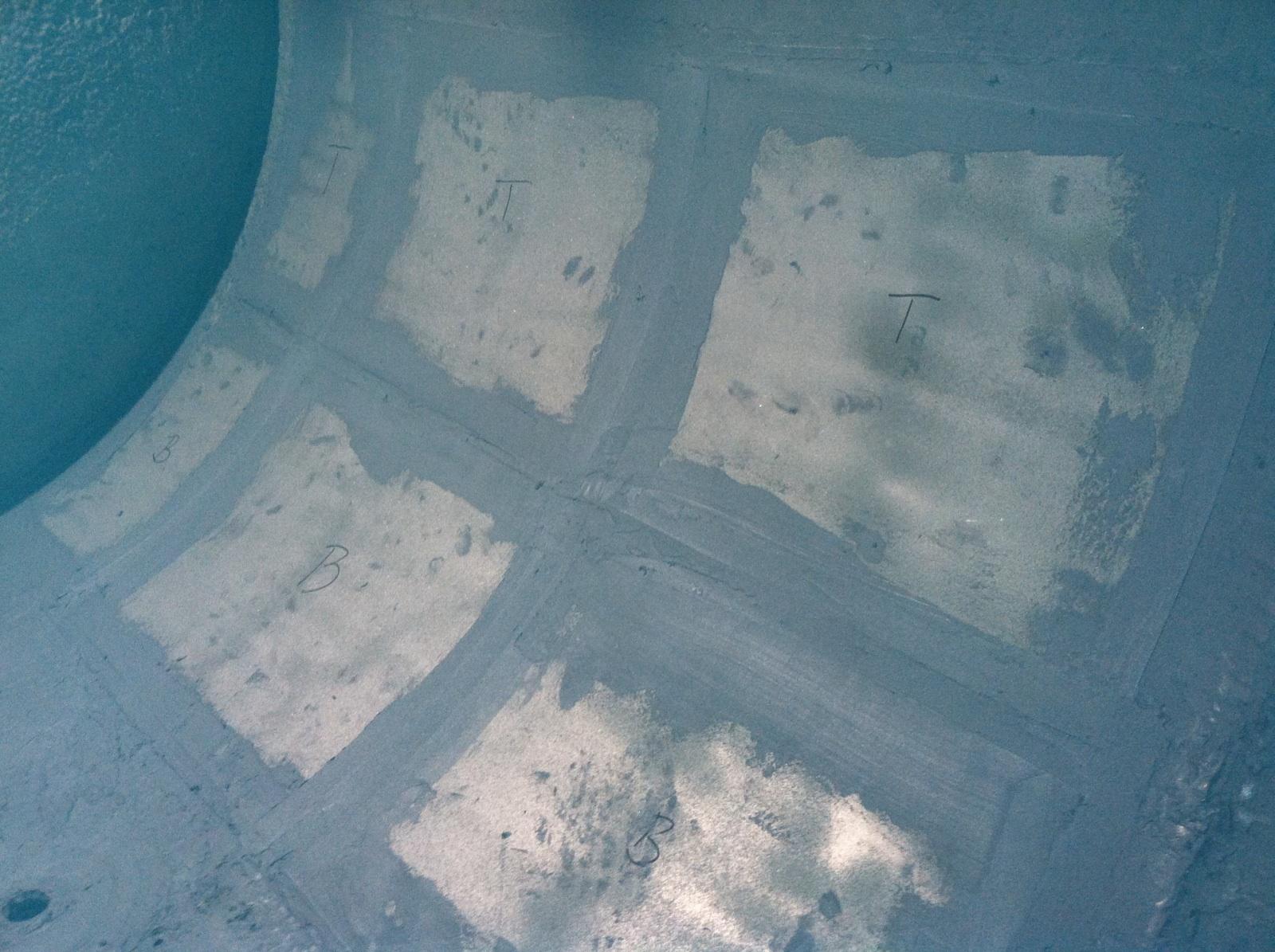

- Lining of equipment such as vessels, separators, condensers, evaporators, knockout drums, diffusers and heat exchangers operating at high temperature
- Repair of existing equipment linings
- Protection of tanks and secondary containment areas from chemicals and the effects of corrosion

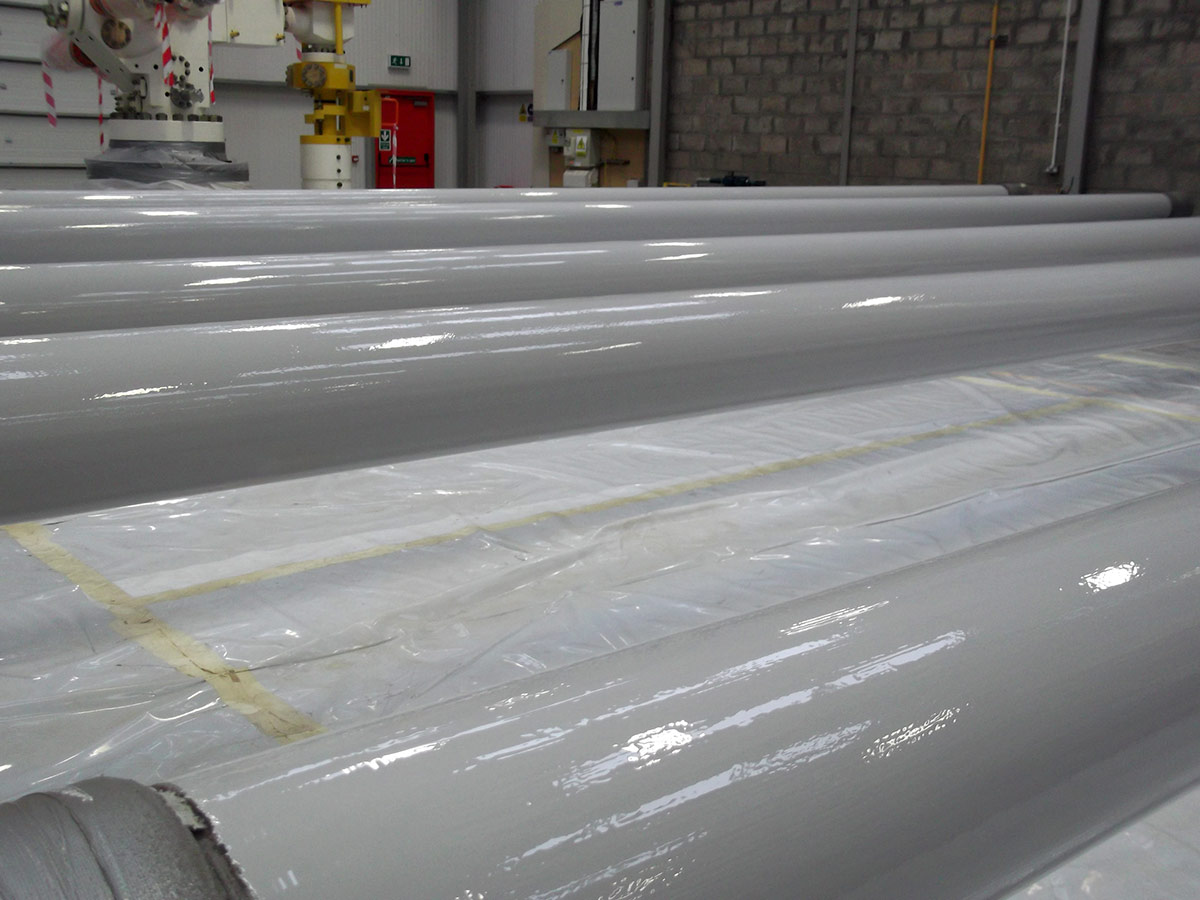

- Coating of pipelines prone to corrosion damage
- Creation of irregular load bearing shims
|Key technical data:
|Working life at 20°C (68°F)
|Time to immersion service at 30°C (86°F)
|Pull off adhesion (D4541 / ISO 4624)
||5500 psi (37.9 MPa) at room temperature on grit blasted steel
||Practical coverage rate for a 2 coat system:
3.4 sq.m. (36.5 sq.ft.) per litre per coat
||95°C (203°F) immersed
||Most metallic and non-metallic surfaces including cast iron, stainless steel, brass, copper, concrete, wood, fiberglass and aluminium
||Protection of equipment operating under immersion at high temperatures
||4 litres and 10 litres. Pack sizes may vary locally.
* All products are subject to regional restrictions. Check with your local Distributor for more information
NSF/ANSI 61 - 2016: Drinking Water System Components - Health Effects
WRAS Approved Material
